Installing the SAML 2.0 Protocol (aka SAML-P) extension

Contents[Hide]

1. Overview

The Security Assertion Markup Language (SAML) version 2.0 protocol is an extension you may choose to use with the federated authentication functionality in Dundas BI. Alternatively, you can set up federated authentication using the WS-Federation and OpenID protocols, which are already included in your installation of Dundas BI.

During the Dundas BI installation procedure, the SAML 2.0 Protocol Extension will be downloaded and installed automatically if you select the option to do so. However, if you skipped this step or the download happened to be offline at the time, you can install the extension later by following the steps in this article.

2. Install the extension automatically

The Dundas BI Deployment application in Windows gives you the option of downloading and installing the extension as part of the overall installation procedure. Make sure the option is checked when you arrive at that step in the procedure.

If you decide to skip that step, you can install the extension from the Deployment application's main screen by clicking Download and install the SAML extension from the Extensions tab.

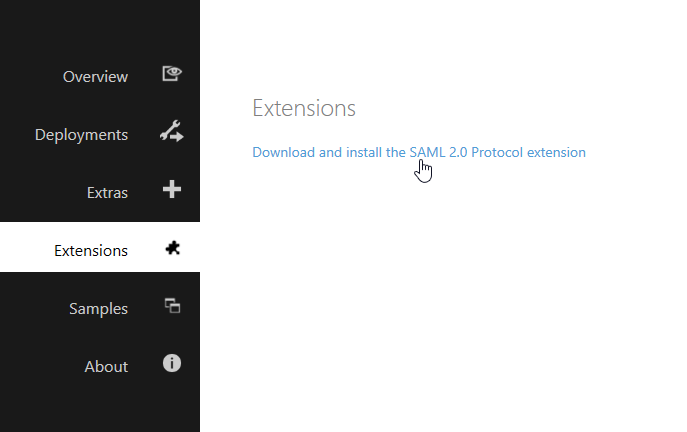

Download and install the SAML extension
Download and install the SAML extension

Note
This is only available when installing Dundas BI on Windows. For Linux servers and Docker images, download the extension and install it as described in the following section.

3. Download and install the extension manually

You can also install the extension yourself directly into Dundas BI. You will need to install it this way when Dundas BI runs on a Linux server or from a Docker image.

3.1. Download

Download the version of the extension that is compatible with your version of Dundas BI.

To download the correct extension ZIP file, modify the URL below with the version you are looking to download, and paste into a web browser:

Framework VersionOperating SystemURL
.NET Framework Windows http://www.dundas.com/support/dbi-installer/DBI/Plugins/Saml2Protocol/{Your Dundas BI full version}/Dundas.Saml2Protocol.zip
.NET Core Linux/Docker http://www.dundas.com/support/dbi-installer/DBI/Plugins/Saml2Protocol/{Your Dundas BI full version}/Dundas.NetCore.Saml2Protocol.zip

{Your Dundas BI full version} should be replaced in the URL above. For example, version 8.0.2 Revision 3 would have the following links:

http://www.dundas.com/support/dbi-installer/DBI/Plugins/Saml2Protocol/8.0.2.1003/Dundas.Saml2Protocol.zip

http://www.dundas.com/support/dbi-installer/DBI/Plugins/Saml2Protocol/8.0.2.1003/Dundas.NetCore.Saml2Protocol.zip

3.2. Extension installation (version 8 and above)

You can install the extension from Dundas BI's administration interface. Click to expand Setup, then click Extensions and Add New in the toolbar.

You can also use the manage extensions command for the dt command line utility. For more information about extension files, see Understanding the Dundas BI extension format.

3.3. Copy files (version 7 and lower)

The download file listed above is a ZIP file. For Dundas BI version 7 and earlier, extract the contents into the installation's App_Data folder. By default, for example, this location is:

C:\Program Files\Dundas Data Visualization Inc\Dundas BI\Instances\Instance1\www\BIWebsite\App_Data

The following folder structure should now be present (for an instance named Instance1), and the bin folder should contain a series of DLL files:

...\Instance1\www\BIWebsite\App_Data\Extensions\Dundas.Saml2AuthBridgeProtocols\bin\

Note

In version 6 or below, the paths above will be different as the Dundas.Saml2AuthBridgeProtocols parent folder will be an _Authbridge folder. For example:

...\Instance1\www\BIWebsite\App_Data\Extensions\_AuthBridge\Dundas.Saml2AuthBridgeProtocols\bin\

The SAML 2.0 protocol extension may include the following software licensed under terms that require Dundas Data Visualization, Inc. to display these notices:

Sustainsys.Saml2 (formerly Kentor Authentication Services)

Website: https://github.com/Sustainsys/Saml2

For Dundas BI version 6.0.3 starting from revision 11 (6.0.3.1011), and for version 7.0.2 and later:

MIT License

Copyright (c) 2018 Sustainsys AB and contributors

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

For Dundas BI version 6.0.3.1010 and earlier, and versions 7.0.0-7.0.1:

                   GNU LESSER GENERAL PUBLIC LICENSE
                       Version 3, 29 June 2007

 Copyright (C) 2007 Free Software Foundation, Inc. <http://fsf.org/>
 Everyone is permitted to copy and distribute verbatim copies
 of this license document, but changing it is not allowed.


  This version of the GNU Lesser General Public License incorporates
the terms and conditions of version 3 of the GNU General Public
License, supplemented by the additional permissions listed below.

  0. Additional Definitions.

  As used herein, "this License" refers to version 3 of the GNU Lesser
General Public License, and the "GNU GPL" refers to version 3 of the GNU
General Public License.

  "The Library" refers to a covered work governed by this License,
other than an Application or a Combined Work as defined below.

  An "Application" is any work that makes use of an interface provided
by the Library, but which is not otherwise based on the Library.
Defining a subclass of a class defined by the Library is deemed a mode
of using an interface provided by the Library.

  A "Combined Work" is a work produced by combining or linking an
Application with the Library.  The particular version of the Library
with which the Combined Work was made is also called the "Linked
Version".

  The "Minimal Corresponding Source" for a Combined Work means the
Corresponding Source for the Combined Work, excluding any source code
for portions of the Combined Work that, considered in isolation, are
based on the Application, and not on the Linked Version.

  The "Corresponding Application Code" for a Combined Work means the
object code and/or source code for the Application, including any data
and utility programs needed for reproducing the Combined Work from the
Application, but excluding the System Libraries of the Combined Work.

  1. Exception to Section 3 of the GNU GPL.

  You may convey a covered work under sections 3 and 4 of this License
without being bound by section 3 of the GNU GPL.

  2. Conveying Modified Versions.

  If you modify a copy of the Library, and, in your modifications, a
facility refers to a function or data to be supplied by an Application
that uses the facility (other than as an argument passed when the
facility is invoked), then you may convey a copy of the modified
version:

   a) under this License, provided that you make a good faith effort to
   ensure that, in the event an Application does not supply the
   function or data, the facility still operates, and performs
   whatever part of its purpose remains meaningful, or

   b) under the GNU GPL, with none of the additional permissions of
   this License applicable to that copy.

  3. Object Code Incorporating Material from Library Header Files.

  The object code form of an Application may incorporate material from
a header file that is part of the Library.  You may convey such object
code under terms of your choice, provided that, if the incorporated
material is not limited to numerical parameters, data structure
layouts and accessors, or small macros, inline functions and templates
(ten or fewer lines in length), you do both of the following:

   a) Give prominent notice with each copy of the object code that the
   Library is used in it and that the Library and its use are
   covered by this License.

   b) Accompany the object code with a copy of the GNU GPL and this license
   document.

  4. Combined Works.

  You may convey a Combined Work under terms of your choice that,
taken together, effectively do not restrict modification of the
portions of the Library contained in the Combined Work and reverse
engineering for debugging such modifications, if you also do each of
the following:

   a) Give prominent notice with each copy of the Combined Work that
   the Library is used in it and that the Library and its use are
   covered by this License.

   b) Accompany the Combined Work with a copy of the GNU GPL and this license
   document.

   c) For a Combined Work that displays copyright notices during
   execution, include the copyright notice for the Library among
   these notices, as well as a reference directing the user to the
   copies of the GNU GPL and this license document.

   d) Do one of the following:

       0) Convey the Minimal Corresponding Source under the terms of this
       License, and the Corresponding Application Code in a form
       suitable for, and under terms that permit, the user to
       recombine or relink the Application with a modified version of
       the Linked Version to produce a modified Combined Work, in the
       manner specified by section 6 of the GNU GPL for conveying
       Corresponding Source.

       1) Use a suitable shared library mechanism for linking with the
       Library.  A suitable mechanism is one that (a) uses at run time
       a copy of the Library already present on the user's computer
       system, and (b) will operate properly with a modified version
       of the Library that is interface-compatible with the Linked
       Version.

   e) Provide Installation Information, but only if you would otherwise
   be required to provide such information under section 6 of the
   GNU GPL, and only to the extent that such information is
   necessary to install and execute a modified version of the
   Combined Work produced by recombining or relinking the
   Application with a modified version of the Linked Version. (If
   you use option 4d0, the Installation Information must accompany
   the Minimal Corresponding Source and Corresponding Application
   Code. If you use option 4d1, you must provide the Installation
   Information in the manner specified by section 6 of the GNU GPL
   for conveying Corresponding Source.)

  5. Combined Libraries.

  You may place library facilities that are a work based on the
Library side by side in a single library together with other library
facilities that are not Applications and are not covered by this
License, and convey such a combined library under terms of your
choice, if you do both of the following:

   a) Accompany the combined library with a copy of the same work based
   on the Library, uncombined with any other library facilities,
   conveyed under the terms of this License.

   b) Give prominent notice with the combined library that part of it
   is a work based on the Library, and explaining where to find the
   accompanying uncombined form of the same work.

  6. Revised Versions of the GNU Lesser General Public License.

  The Free Software Foundation may publish revised and/or new versions
of the GNU Lesser General Public License from time to time. Such new
versions will be similar in spirit to the present version, but may
differ in detail to address new problems or concerns.

  Each version is given a distinguishing version number. If the
Library as you received it specifies that a certain numbered version
of the GNU Lesser General Public License "or any later version"
applies to it, you have the option of following the terms and
conditions either of that published version or of any later version
published by the Free Software Foundation. If the Library as you
received it does not specify a version number of the GNU Lesser
General Public License, you may choose any version of the GNU Lesser
General Public License ever published by the Free Software Foundation.

  If the Library as you received it specifies that a proxy can decide
whether future versions of the GNU Lesser General Public License shall
apply, that proxy's public statement of acceptance of any version is
permanent authorization for you to choose that version for the
Library.

Azure Active Directory IdentityModel Extensions for .NET

Website: https://github.com/AzureAD/azure-activedirectory-identitymodel-extensions-for-dotnet

The MIT License (MIT)

Copyright (c) Microsoft Corporation

Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

5. See also

Dundas Data Visualization, Inc.
500-250 Ferrand Drive
Toronto, ON, Canada
M3C 3G8

North America: 1.800.463.1492
International: 1.416.467.5100

Dundas Support Hours:
Phone: 9am-6pm, ET, Mon-Fri
Email: 7am-6pm, ET, Mon-Fri
