Use a button to apply a filter value


1. Overview

This article shows you how to set up a filter interaction on a component such as a button, which will filter a visualization when clicked.

The following example uses a button, but other non-data components such as labels can be set up the same way.

2. Create a new dashboard

As an example, create a new dashboard using the Blank template.

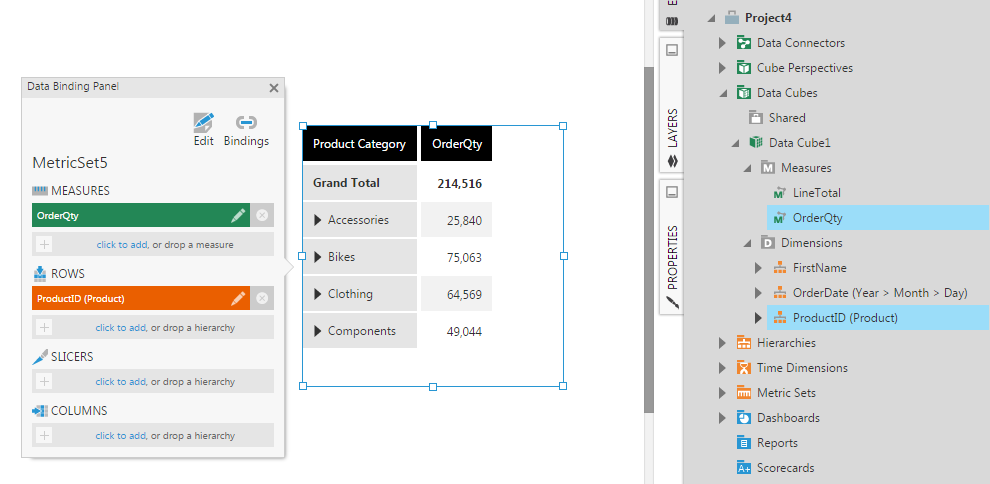

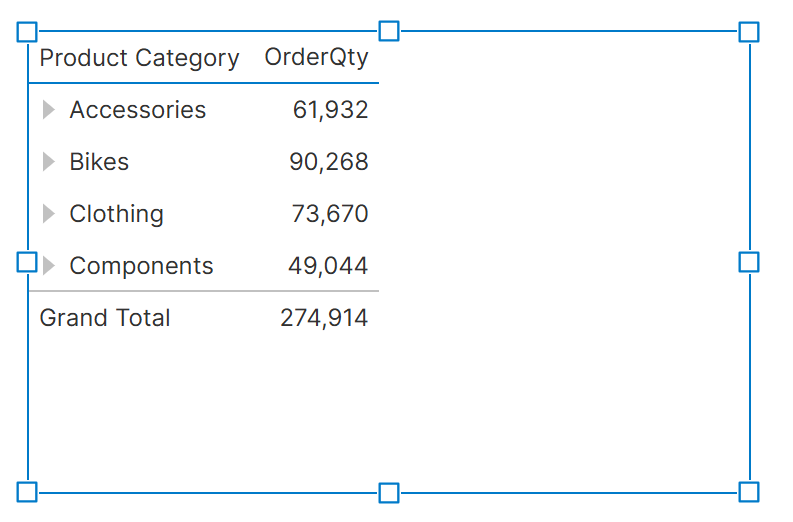

Drag a measure (OrderQty) and row hierarchy (Product) from a data cube to the dashboard canvas. You'll see a table visualization like the one below.

Create a new dashboard
Create a new dashboard

3. Add a view parameter

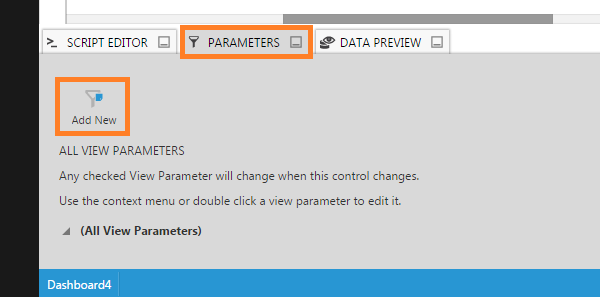

Go to the bottom of the dashboard editor and click to open the Parameters window.

In our case, we will click Add New to add a view parameter for this visualization. You can skip this step if you already have one from another interaction or a filter that you want to use.

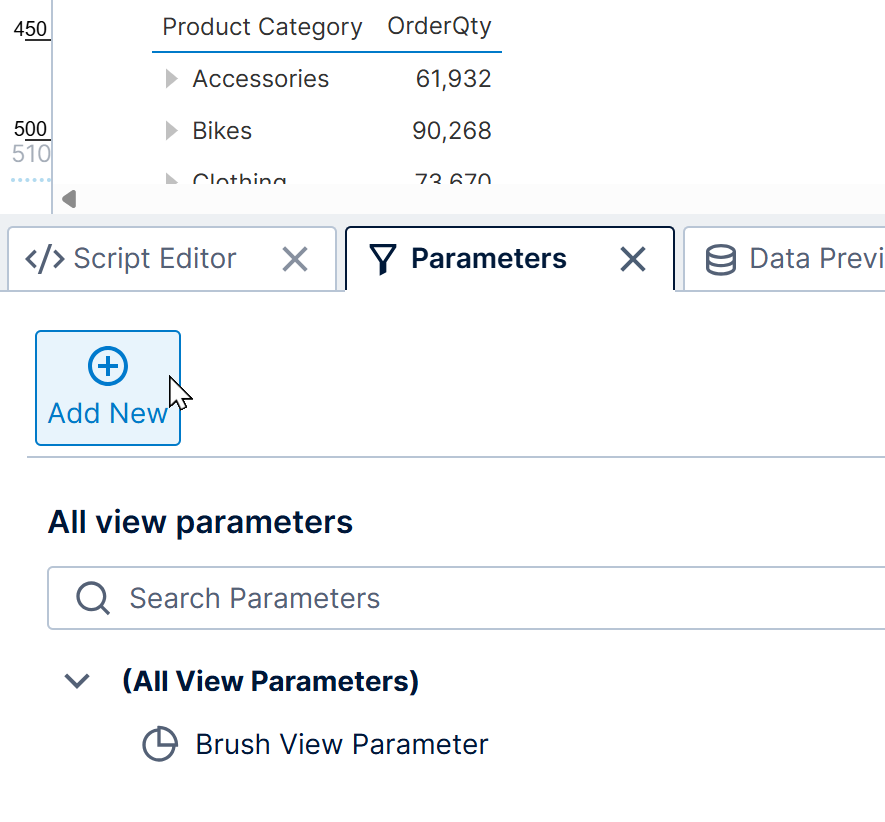

Add a new view parameter
Add a new view parameter

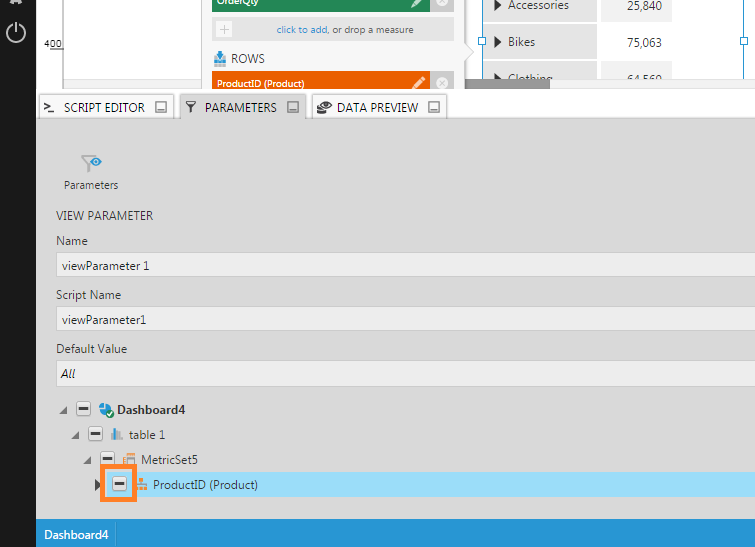

We will connect the new view parameter to the Product hierarchy in our table visualization. You can give it a descriptive Name.

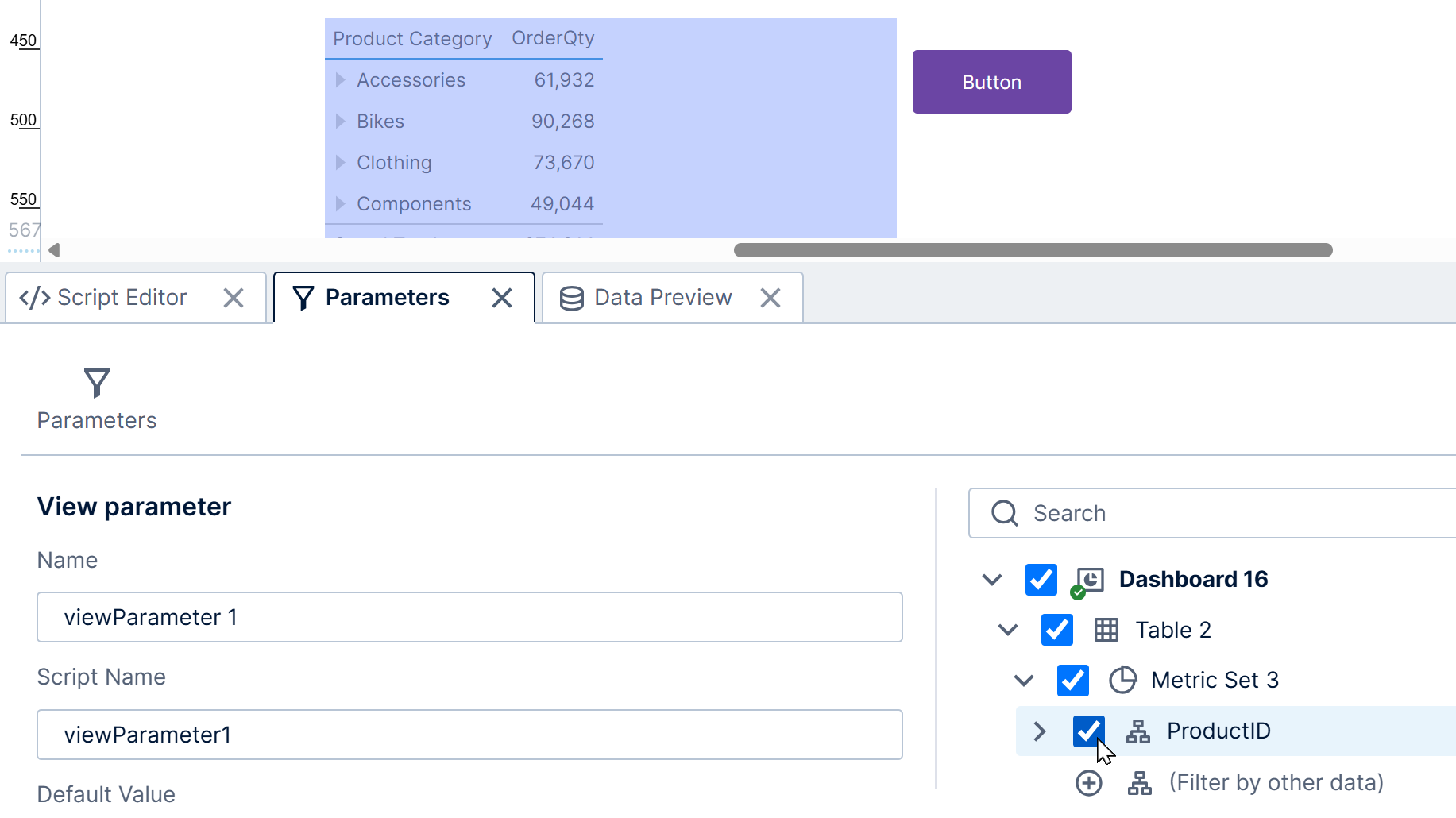

Connect the view parameter
Connect the view parameter

4. Add a button component and set up filter interaction

Click Components in the toolbar, and in this example, we will select to add a Button to filter our Product data to a particular value.

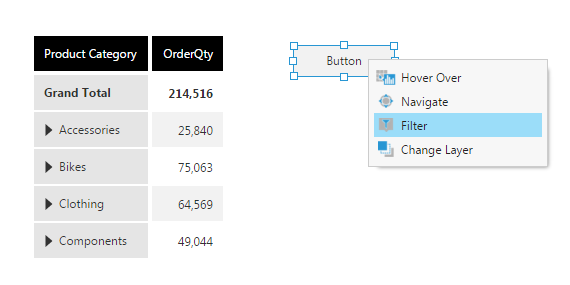

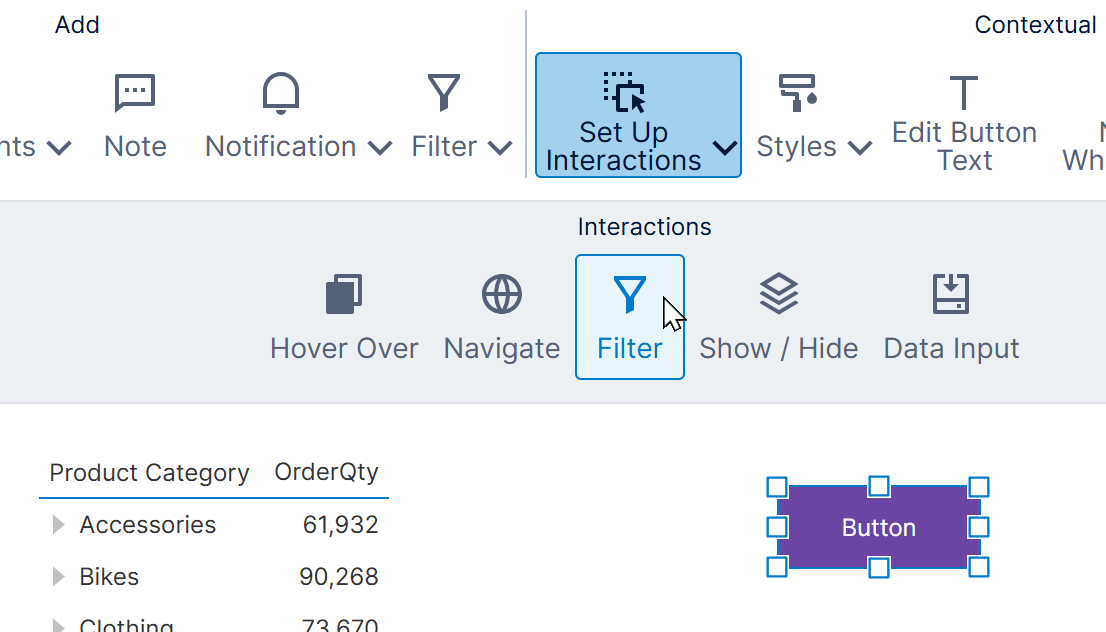

In the toolbar or right-click menu for the button, click Set Up Interactions, then click Filter.

Set up a Filter interaction
Set up a Filter interaction

To set multiple view parameters at once on button click, you can add additional Filter actions on Click in the Properties window.

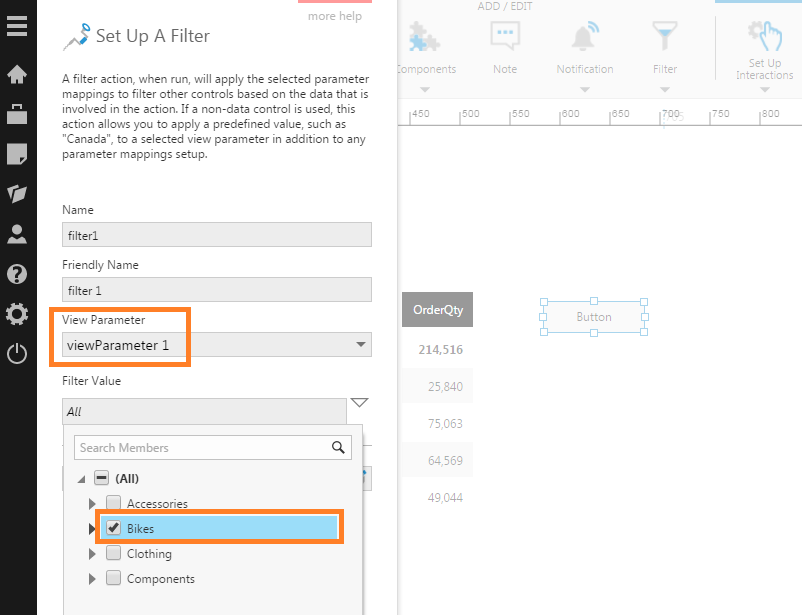

In the filter setup dialog, set the View Parameter to the view parameter you want to change on button click.

Under Filter Value, select the specific filter value you want the button to apply.

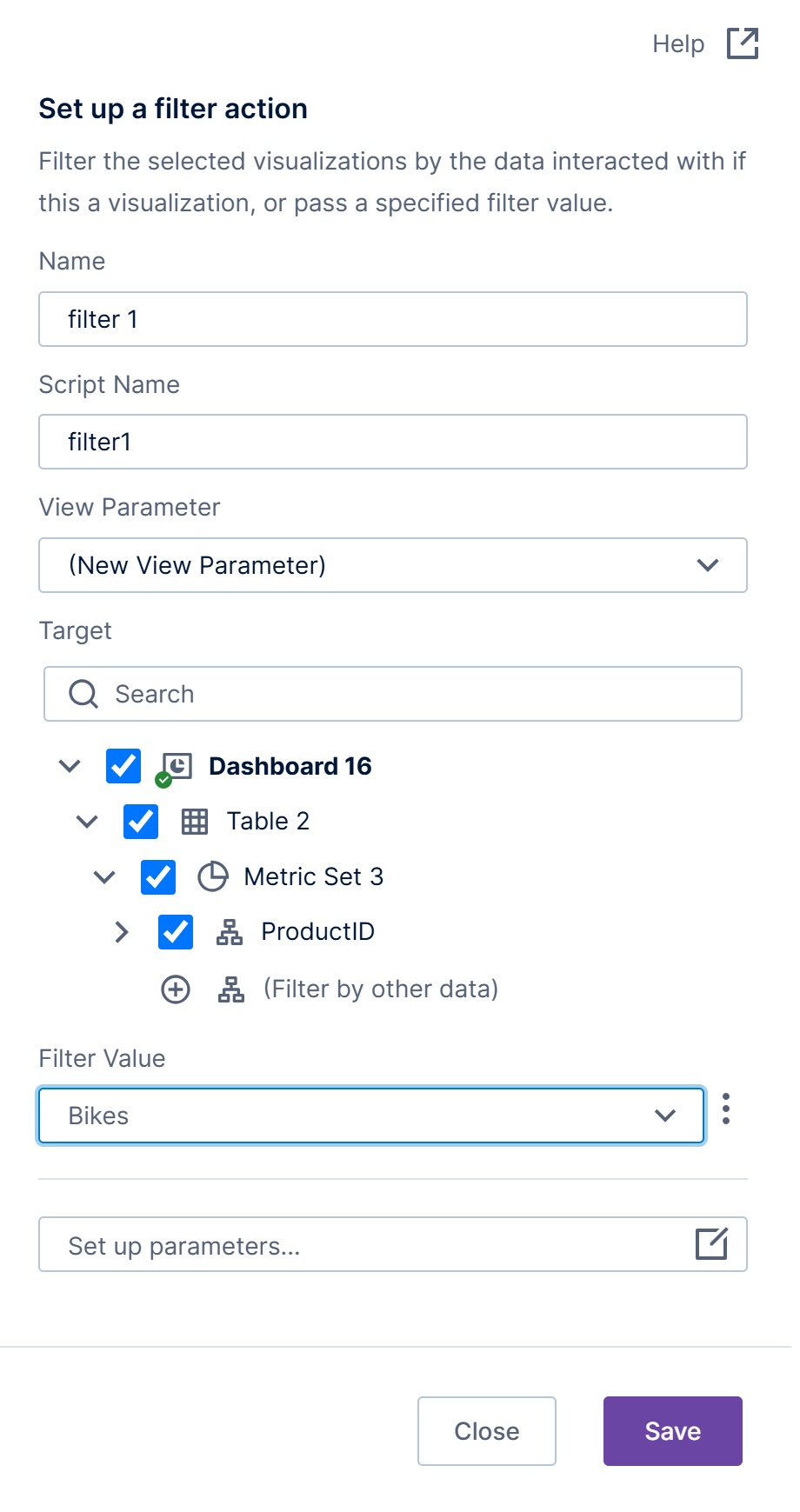

Set up the filter
Set up the filter

5. View the dashboard

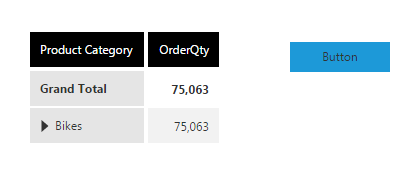

Switch to View mode to test the dashboard. Click the button to see the table visualization filtered to the value you selected during setup.

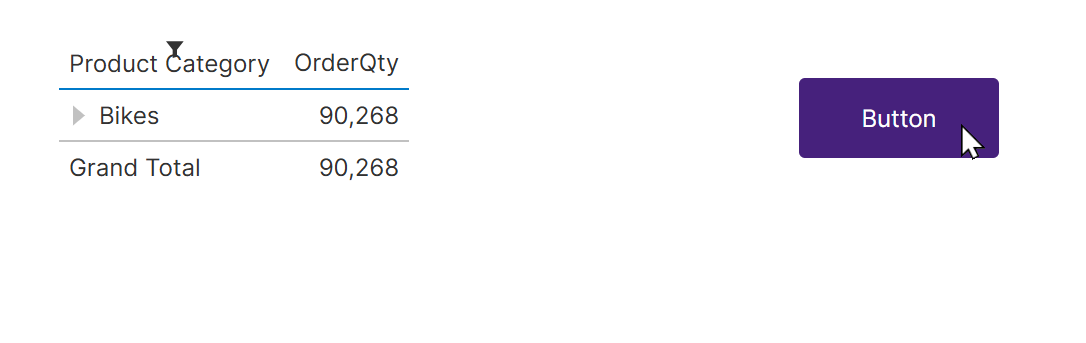

Click the button to filter the table
Click the button to filter the table
